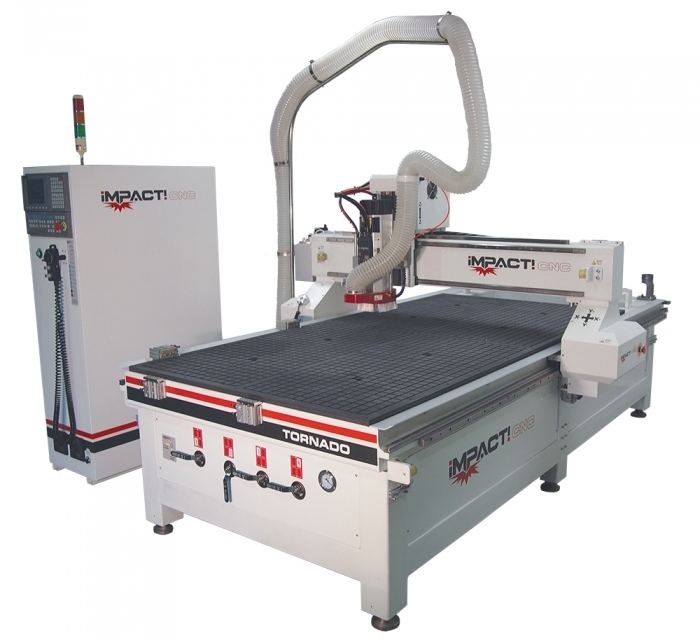

Impact CNC Tornado CNC Router
The Impact CNC Tornado is a production-grade CNC router built for sign making, cabinet making, and parts fabrication. With a 9kW HSD spindle, Japanese Yaskawa servo motors, and a 6+ tool auto-tool-change system as standard, the Tornado delivers the precision, speed, and reliability that demanding production environments require.
The Tornado is engineered for high-speed routing of both complex and simple designs across a wide range of materials, including timber:
Timber
MDF
Plastics
Aluminium Composite
Foam
Soft Metals
The Tornado's heavy-duty steel frame and gantry are precision-built for rigidity, minimising vibration and maintaining accuracy at high cutting speeds. All 3 axes are powered by fast, reliable, and quiet Japanese Yaskawa AC Servo motors which provide plenty of torque and power. The X and Y axes run on square THK linear bearings and rails to ensure smooth and accurate travel. These bearings are factory-sealed and provide maintenance-free reliability.
Cutting on the Tornado is performed by a 9kw HSD Auto Tool Change spindle. Coupled with Impact CNC’s 6+-tool static rack, it makes multiple-tool jobs a breeze. Materials are held down with a powerful air-cooled vacuum pump, and dust is efficiently removed with the Impact CNC dust extraction system, which is included as standard. All these components are driven by the industry-renowned Syntec Digital CNC controller.
| Code | Product Name | Size |
|---|---|---|
| TOR-M | Impact CNC Tornado M | 1300mm x 2500mm |
| TOR-L | Impact CNC Tornado L | 1500mm x 3000mm |
| TOR-XL | Impact CNC Tornado XL | 2000mm x 3000mm |
| TOR-XXL | Impact CNC Tornado XXL | 2000mm x 4000mm |
Ready to see the Tornado in action? Contact the Impact CNC team to arrange a demonstration or request a quote
